NKND-032 Concealed Hinge Tilt and turn Window Hardware with Spindle Handle
NKND-032 Concealed Hinge Tilt and turn Window Hardware with Spindle Handle
NKND-032 Concealed Hinge Tilt and turn Window Hardware with Spindle Handle
NKND-032 Concealed Hinge Tilt and turn Window Hardware with Spindle Handle
NKND-032 Concealed Hinge Tilt and turn Window Hardware with Spindle Handle
NKND-032 Concealed Hinge Tilt and turn Window Hardware with Spindle Handle
NKND-032 Concealed Hinge Tilt and turn Window Hardware with Spindle Handle
NKND-032 Concealed Hinge Tilt and turn Window Hardware with Spindle Handle
NKND-032 Concealed Hinge Tilt and turn Window Hardware with Spindle Handle

NKND-032 Concealed Hinge Tilt and turn Window Hardware with Spindle Handle

Model NO.
NKND-032
Quantity:

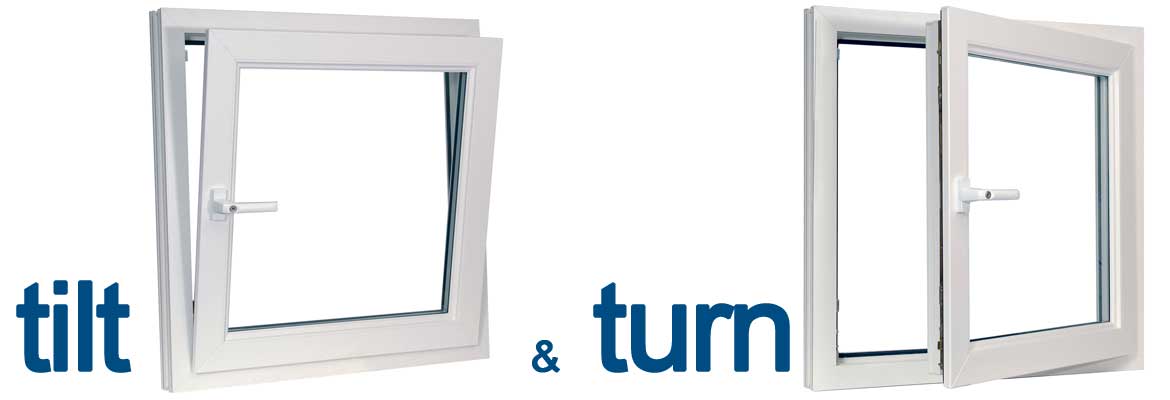

JHL Tilt and Turn Window is designed with concealed and exposed hinges.
You can choose the standard hardware configuration, or you can choose the hardware according to the size of the window sash.
It can be quickly installed through flexible all-round adjustment to ensure the normal operation of Tilt and Turn Window.

The Gear box is made of high-quality zinc alloy materials and used with Spindle handles.,and the square hole can be rotated by 180 degrees.
The anti-misoperation device can avoid the situation that the window is not closed properly and improve the safety of the window.
Innovative structural design makes installation more convenient, transmission is more stable and quiet.

Concealed hinges are made of high-quality 304 stainless steel and copper materials, with latches and precise positioning,
adjustable up and down, left and right, so as to achieve quick installation and improve the sealing of the window.

Specification

Part NONKND-032
Sash Height600-2400mm
Sash Width400-1600mm
Load-bearing≤130KGS
RemarkApplied to European C Groove Profile

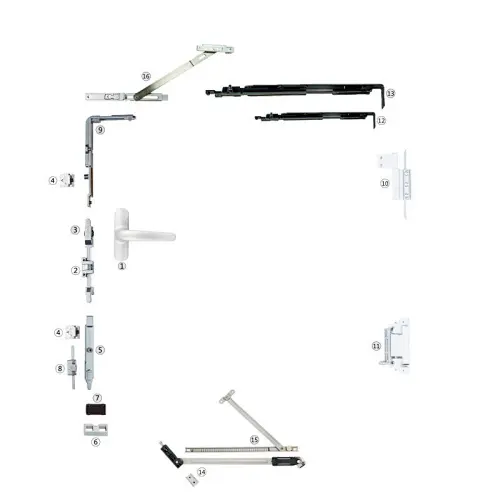

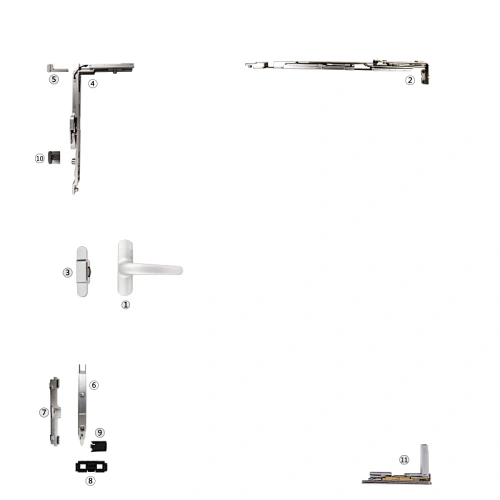

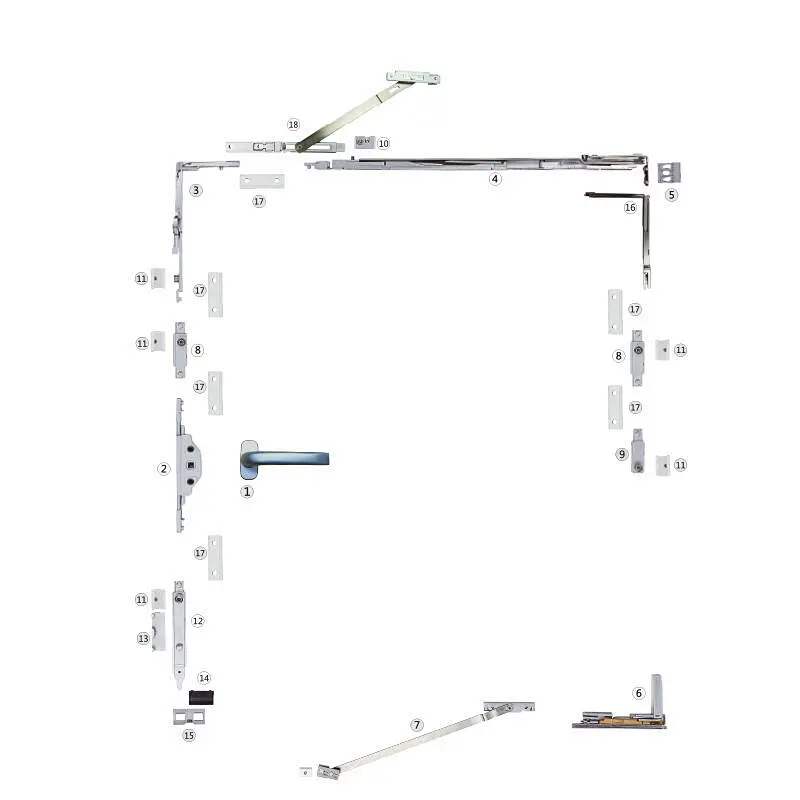

Hardware Parts

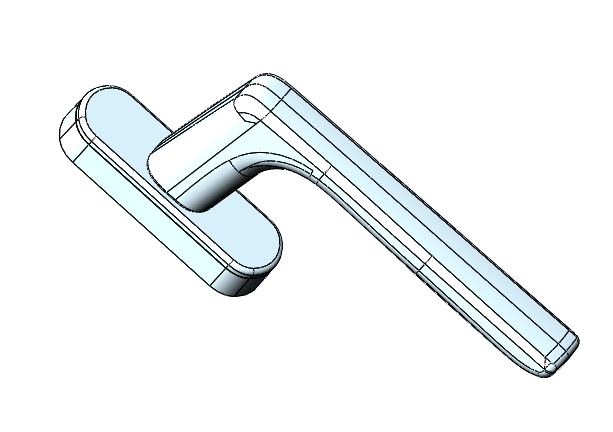

Handles

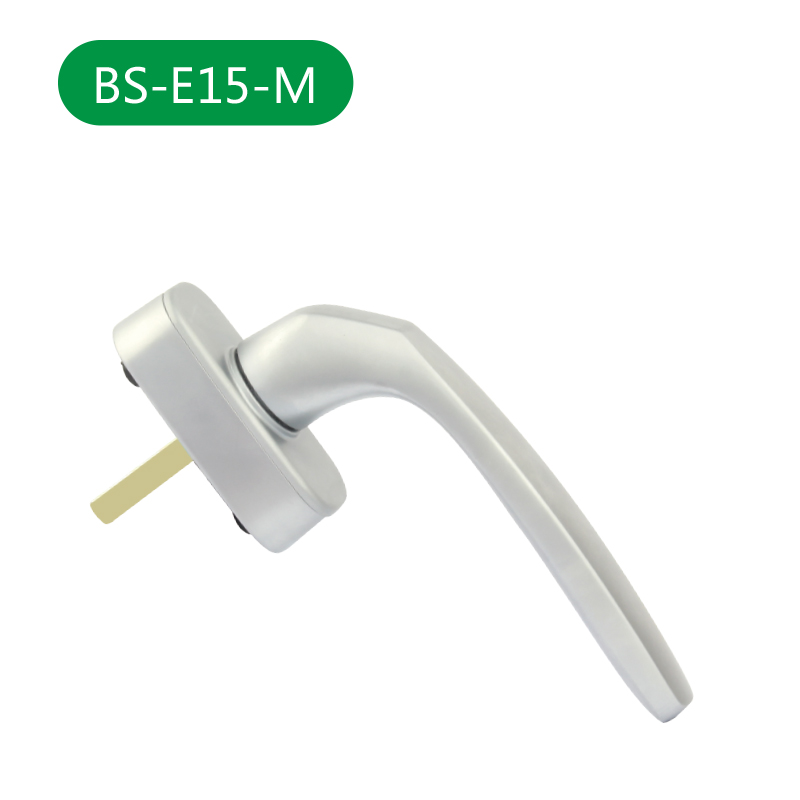

BS-E15-M

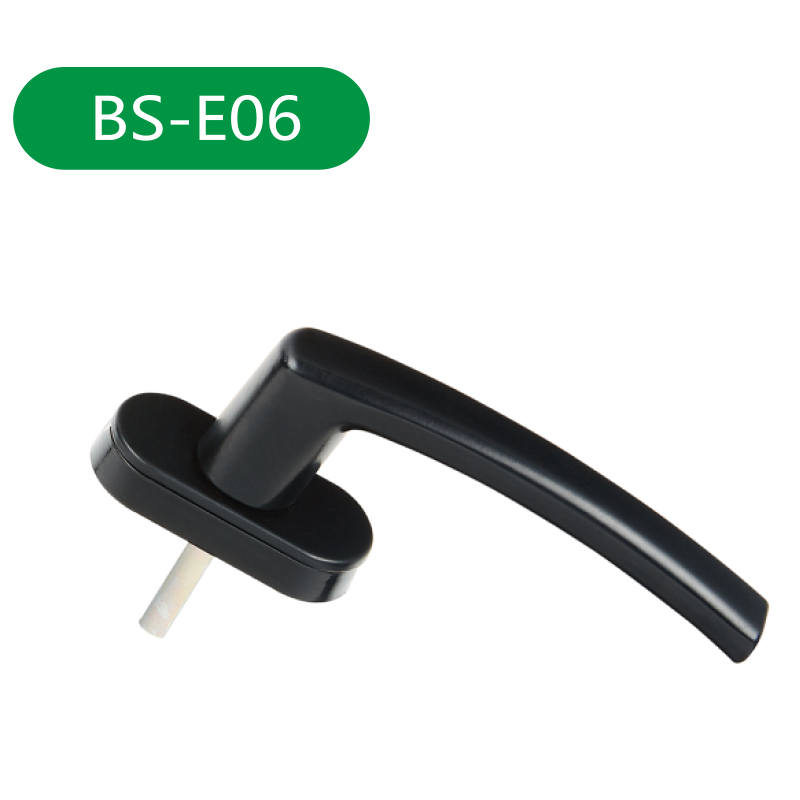

BS-E06
BS-E08

Load-Bearing Parts
Upper Hinge

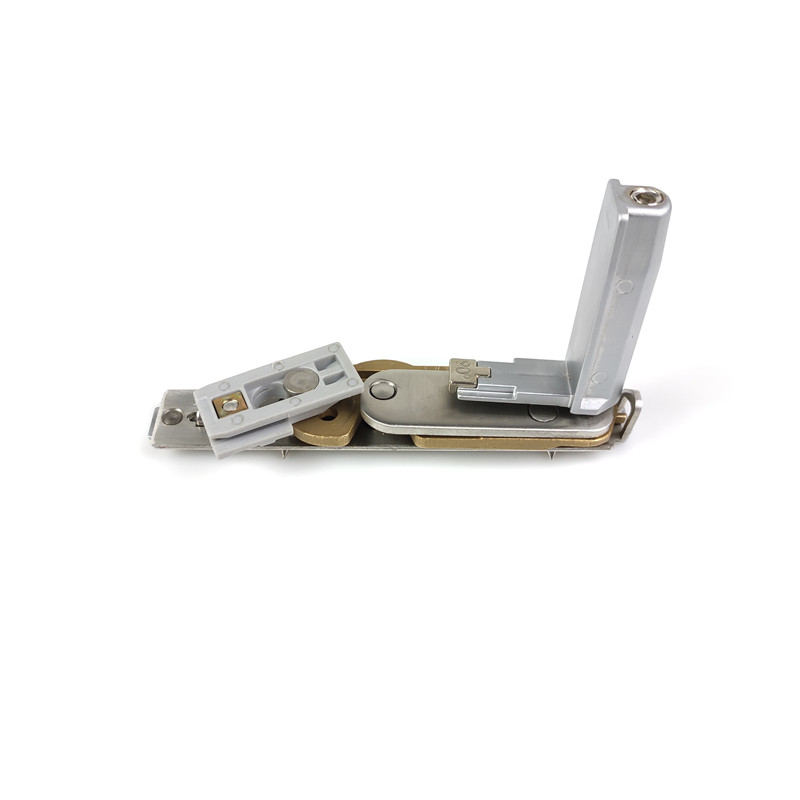

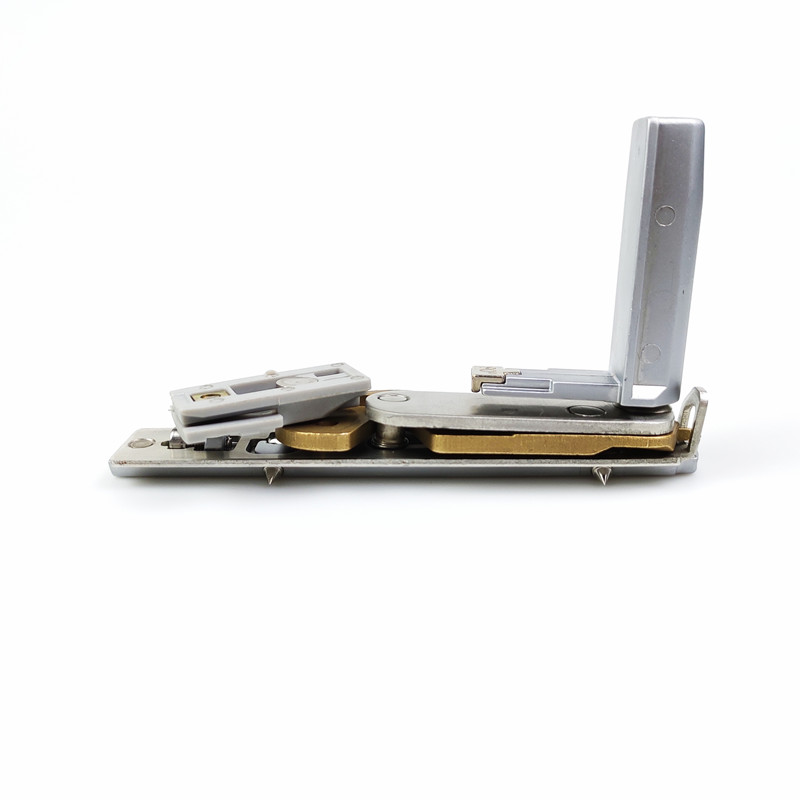

Concealed Lower Hinge
Auxiliary Rod

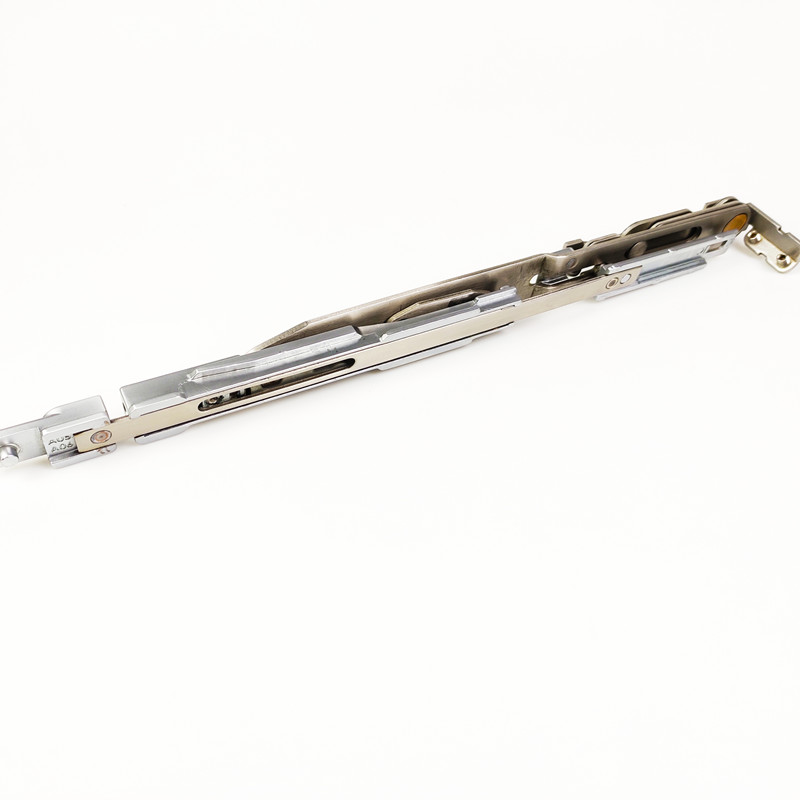

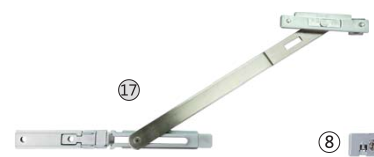

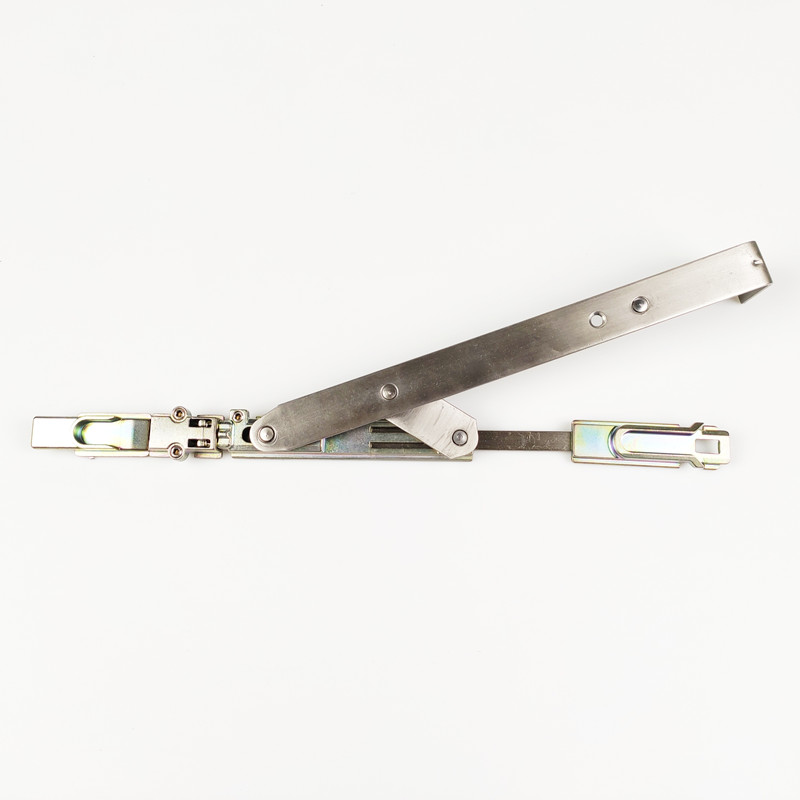

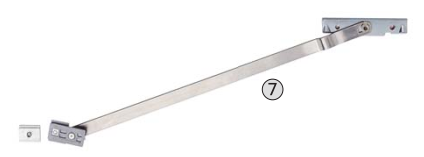

Stay

Accessories
Corner Drive ZJQ-A08
Keeper SK-B05
Locking Point SD-A06

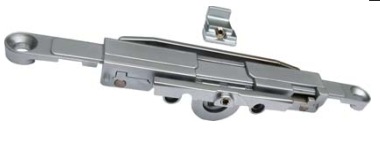

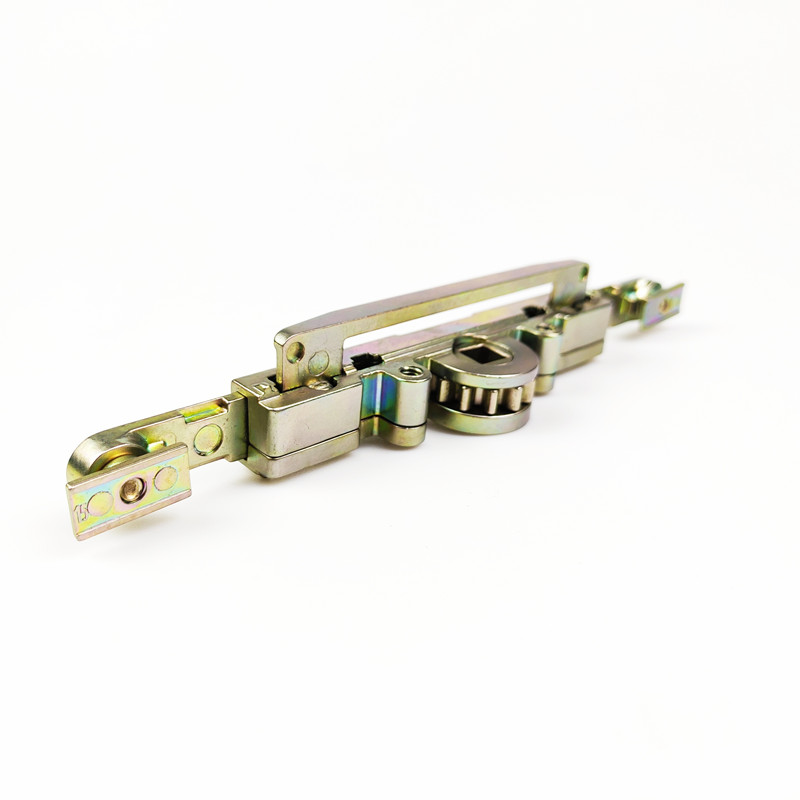

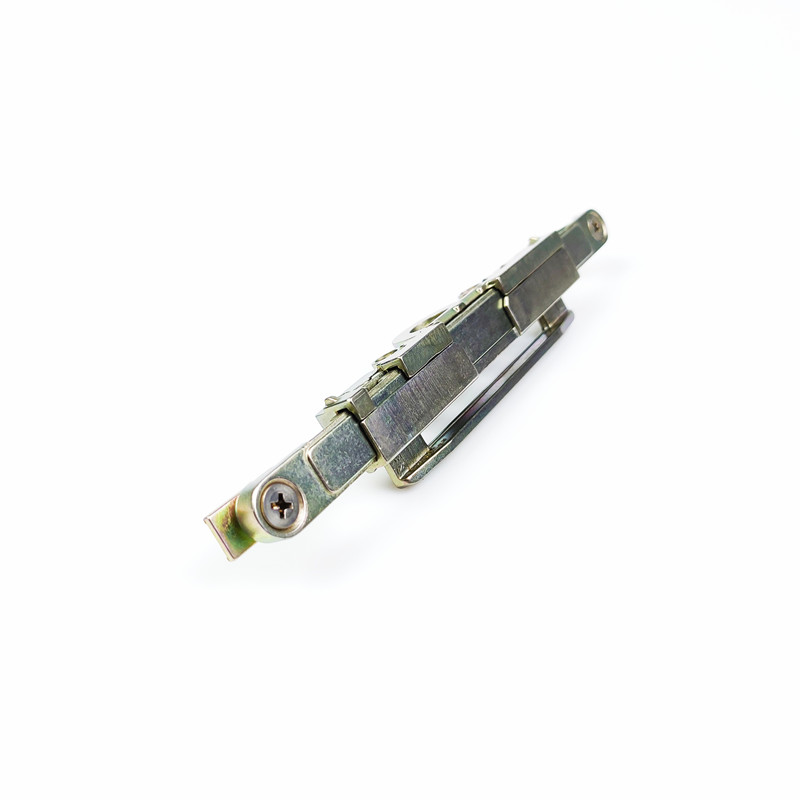

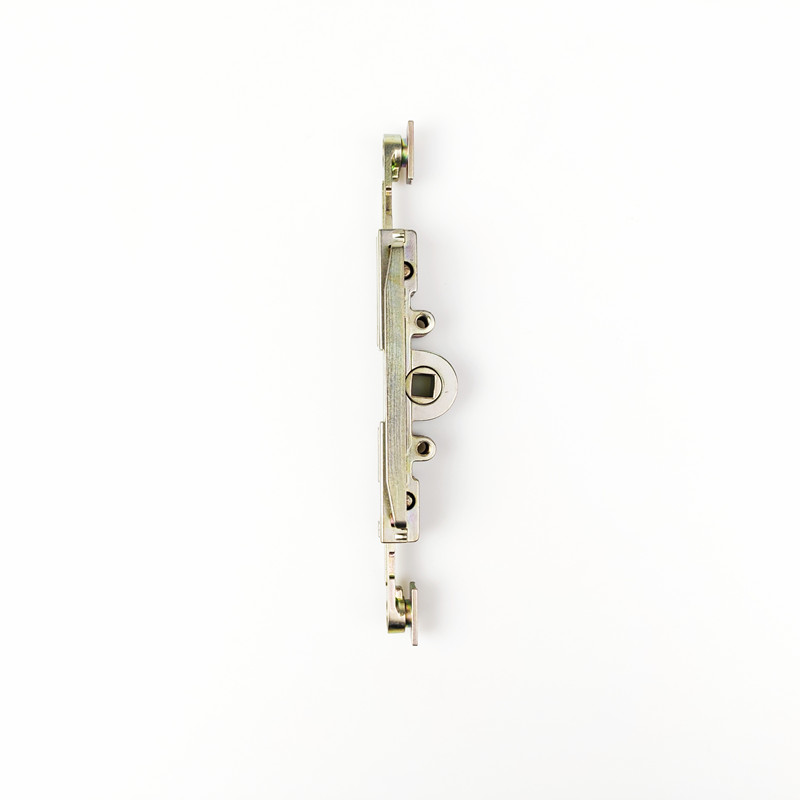

Gear Box CDH-A06
Bolt CX-B06
Climbing Base SZ-B01
Run up Block PSK-A01
