Model NO.
WPKC-05
Quantity:

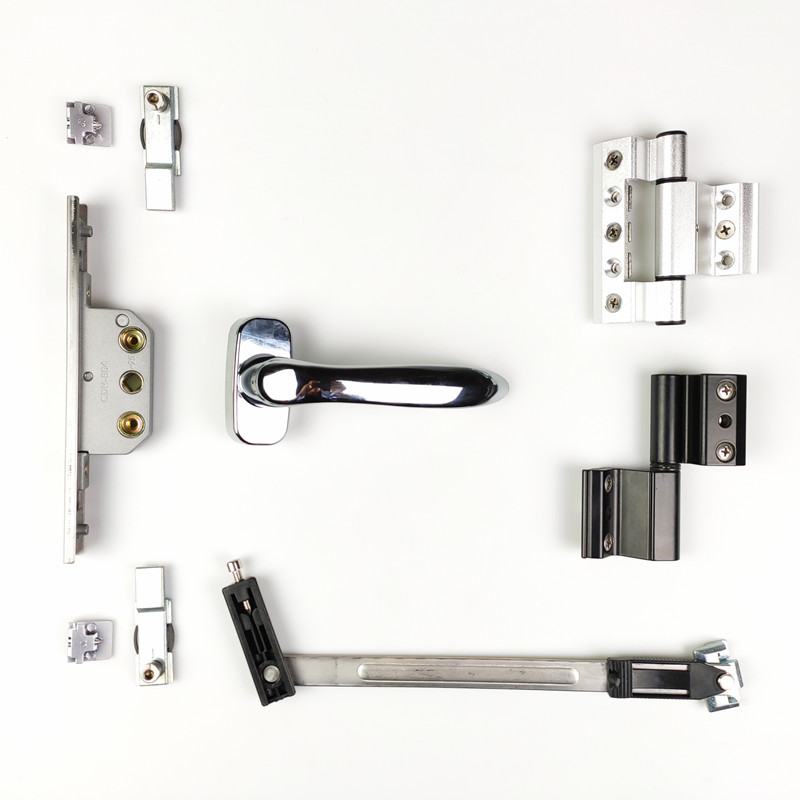

JHL Outswing Casement Window Hardware System is applicable for standard European C Groove Profile, The advantage of outswing window is that do not occupy indoor space. The entire system uses high-quality anti-corrosion materials,the hinges and lock point is eccentric & adjustable, easy for installing.

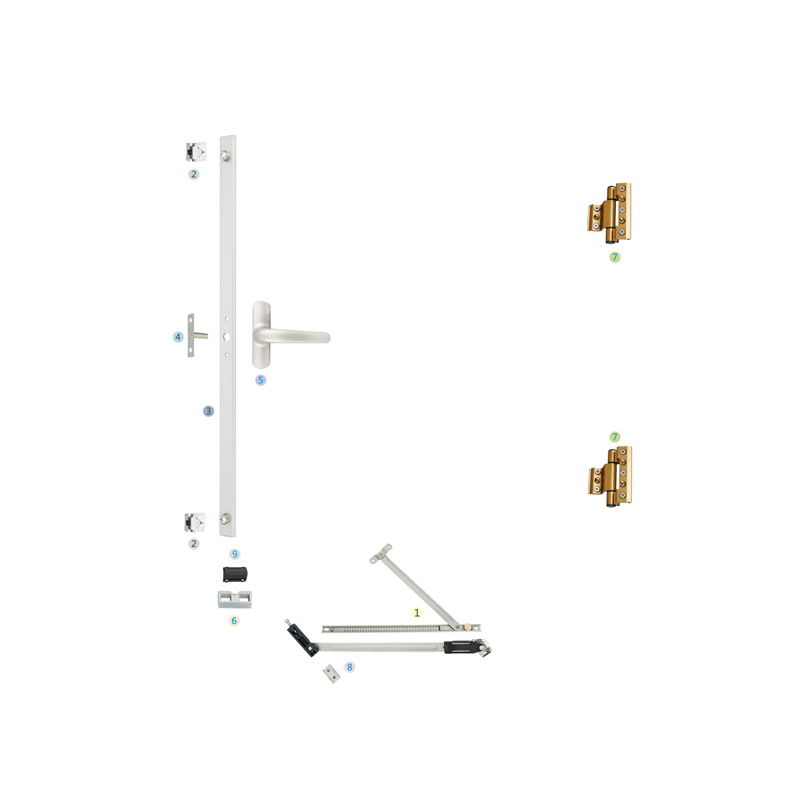

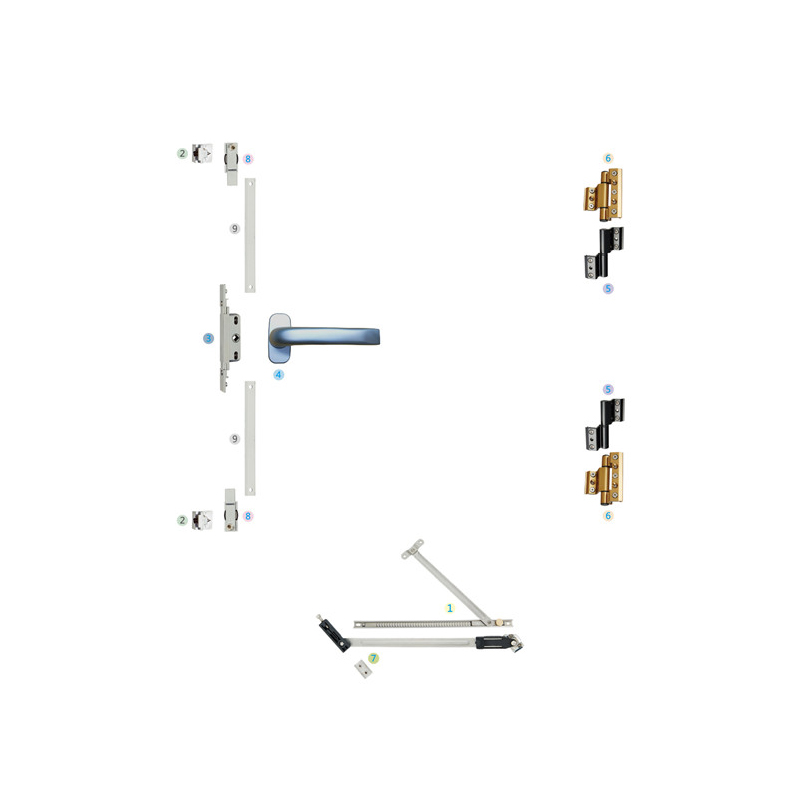

Two system solutions, spindle or fork handle

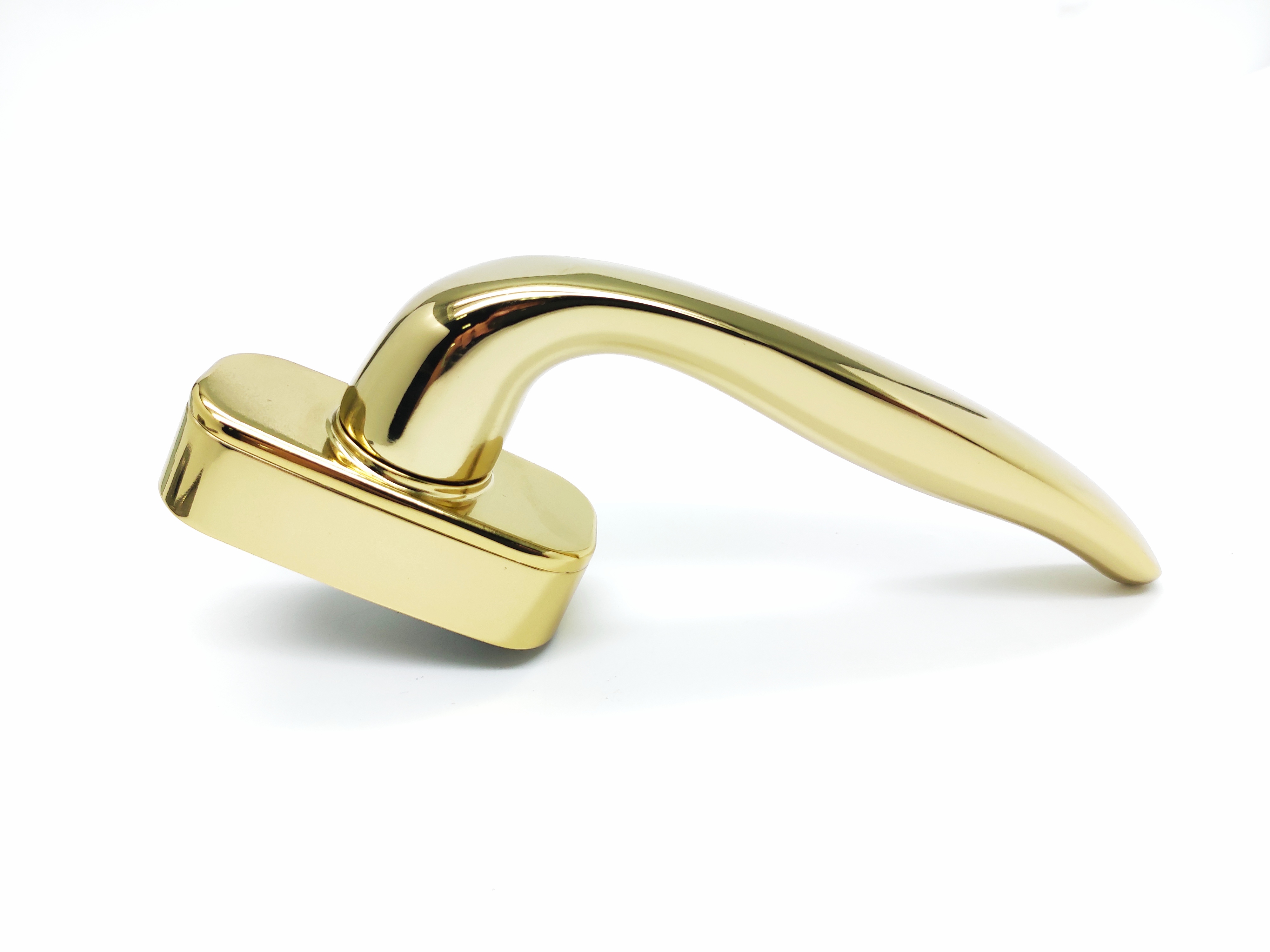

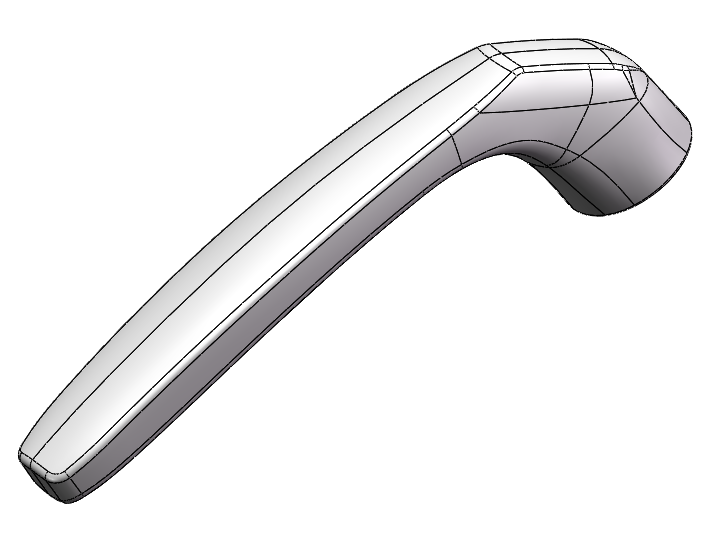

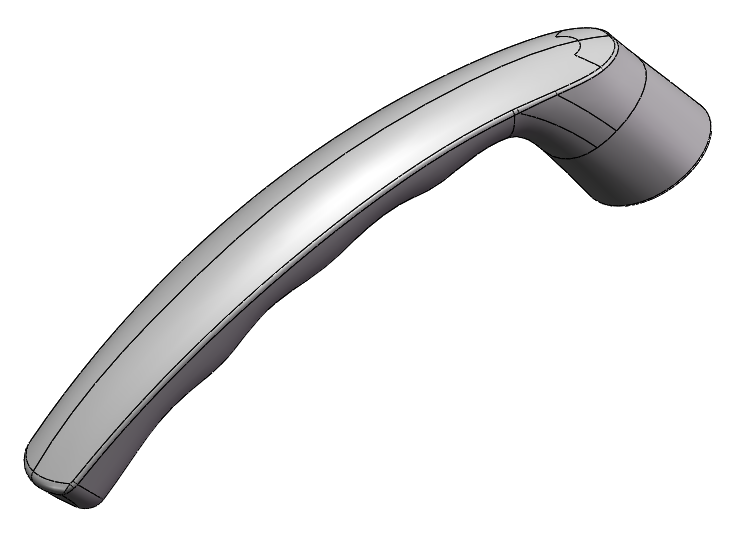

JHL Spindle handle Series is made by our professional design team and conform to the line design of ergonomics.
The steel ball and spring of the base are made of imported quality materials, which are more resistant to wear and have a longer service life.
The handle has a strong sense of positioning and has passed the 500-hour salt spray test, which is very suitable for coastal areas.

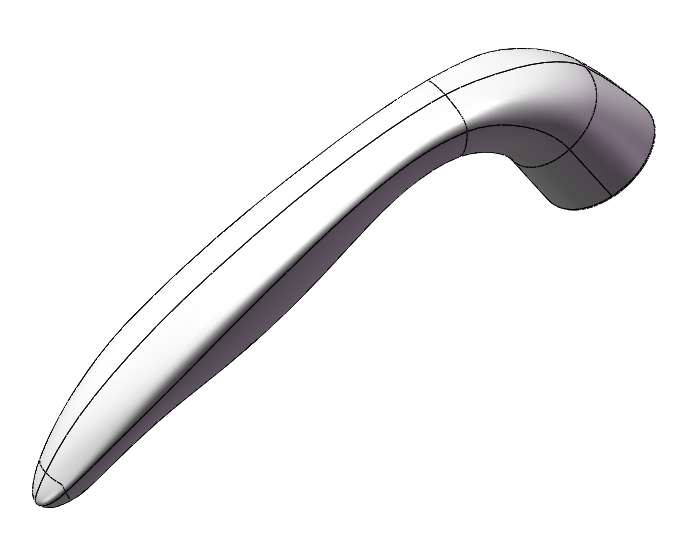

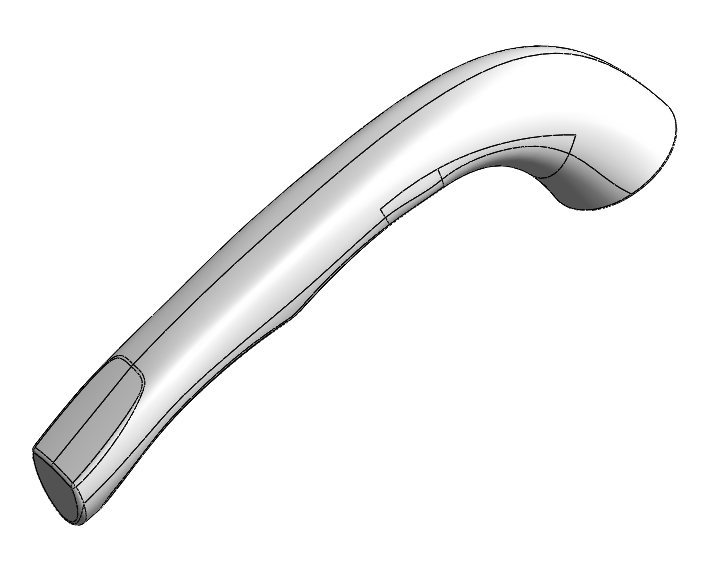

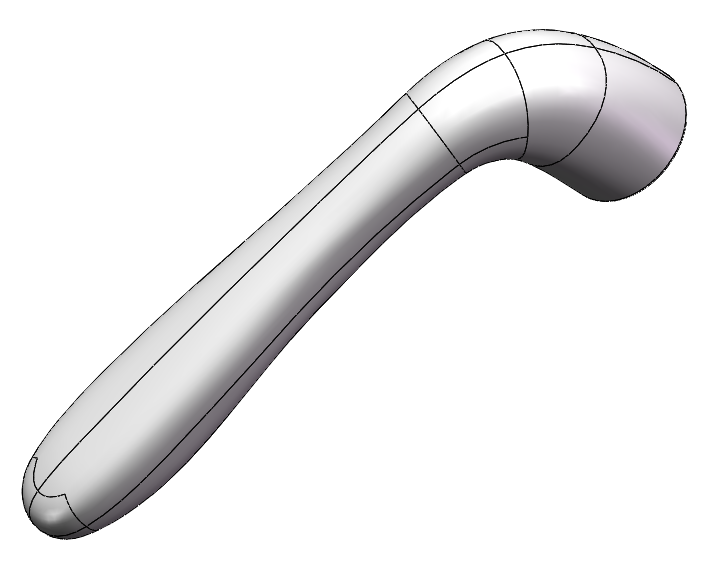

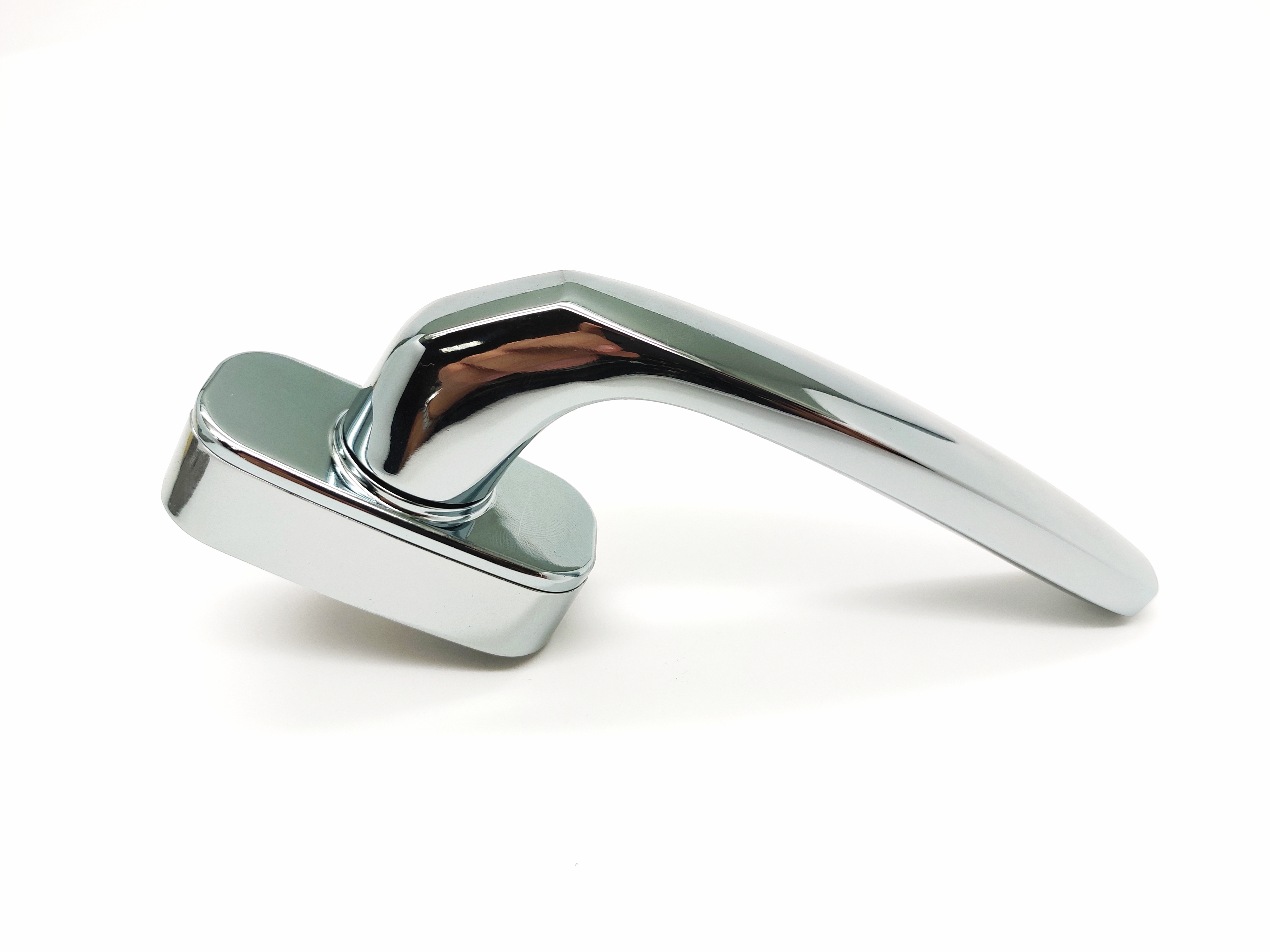

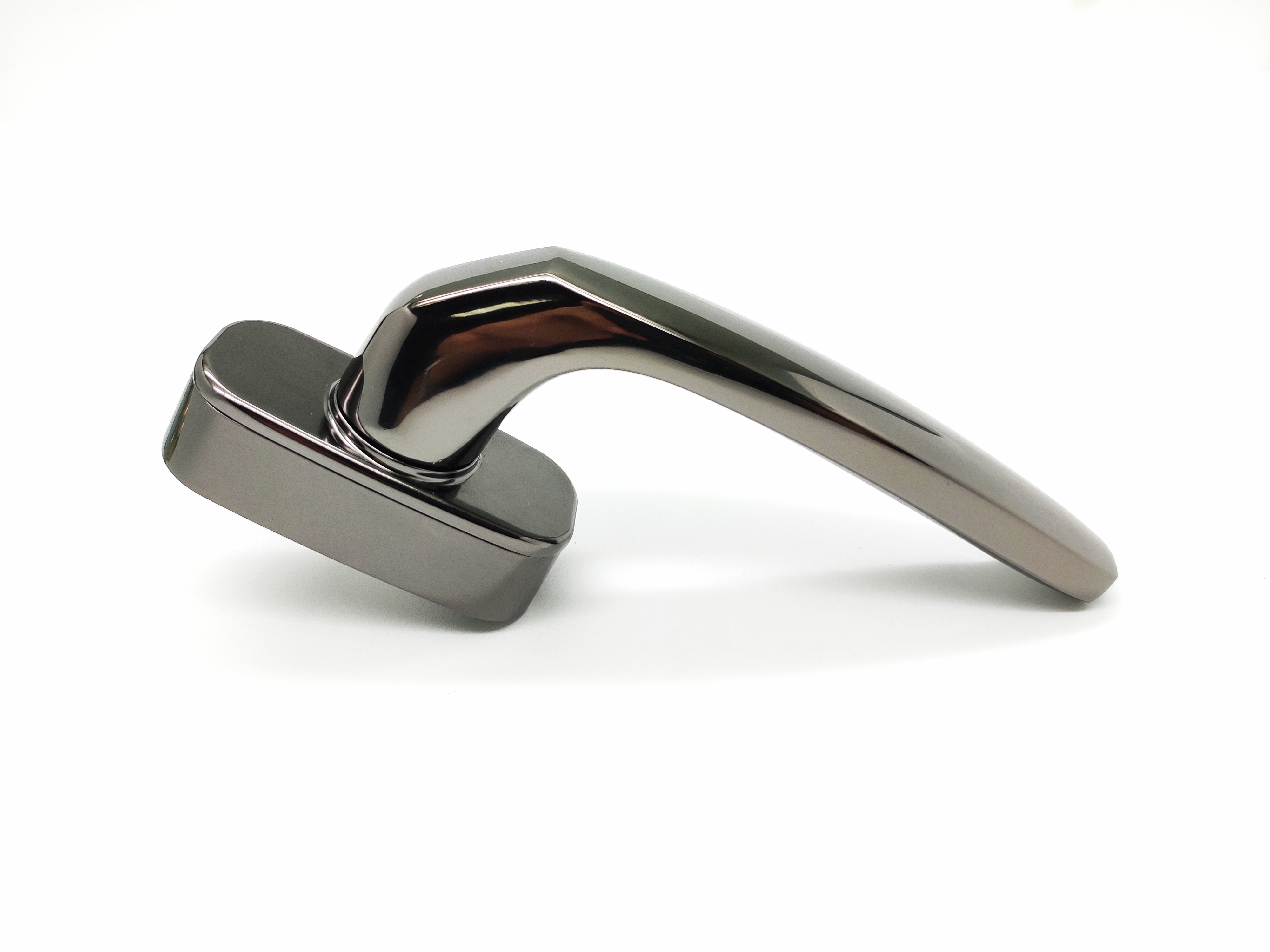

Choose the handle style you want

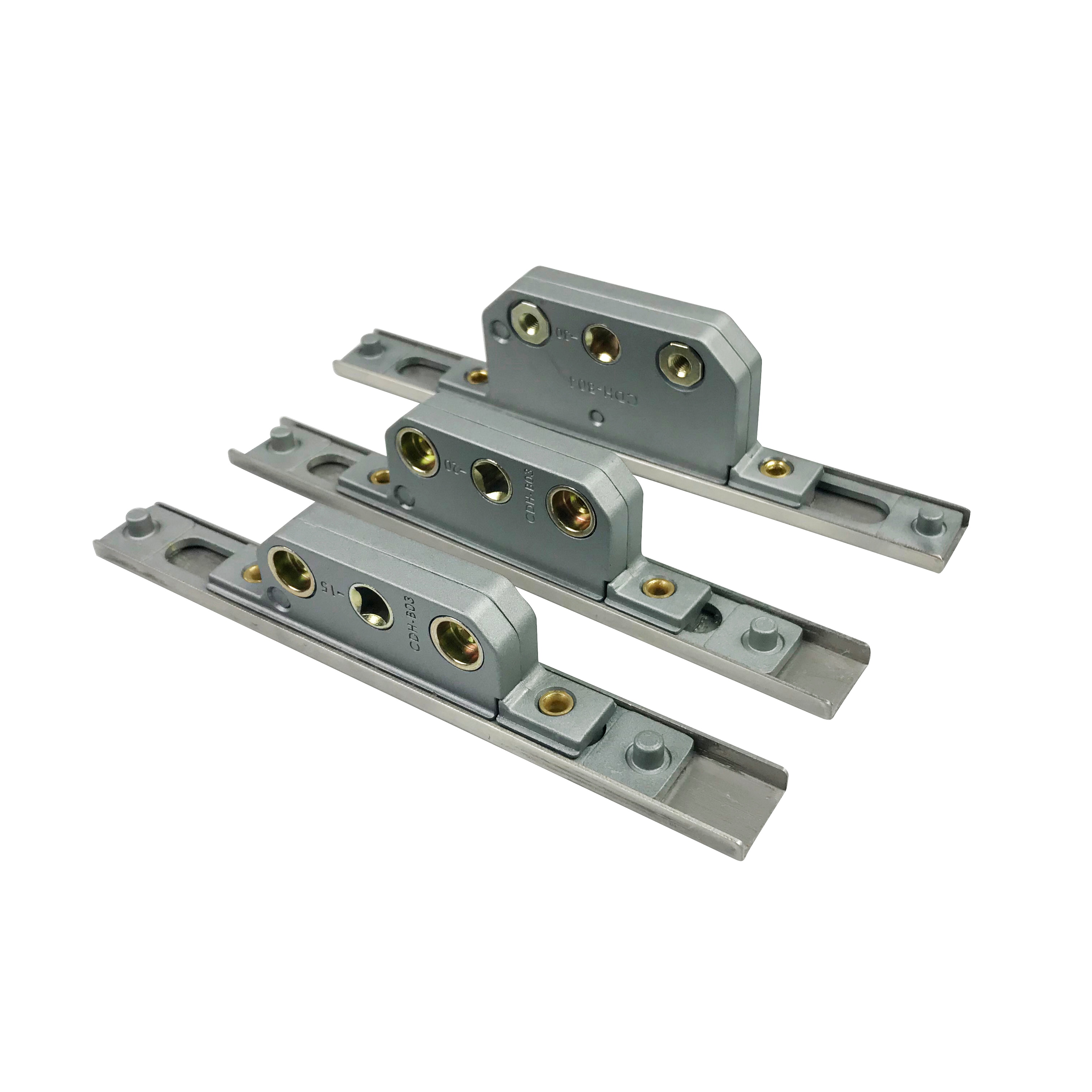

High quality S.S.304 panel and zinc alloy lock body, silent gear transmission structure,and independent support nut can prevent the gearbox extension of anti-pull deviation and ensure stability.

with 7X7 square hole, transmission distance is 19mm, fixed clamping, under the condition of torque 35Nm, the cycle test reaches 35,000 times.

Specification

Part NOWPKC-05
Sash Height300-1800mm
Sash Width300-800mm
Load-bearing≤80KGS
Center Distance of Gearbox20/25/30/35/50mm
