TSTLM-02 Heavy Lift and Slide Door Hardware System
TSTLM-02 Heavy Lift and Slide Door Hardware System
TSTLM-02 Heavy Lift and Slide Door Hardware System
TSTLM-02 Heavy Lift and Slide Door Hardware System
TSTLM-02 Heavy Lift and Slide Door Hardware System

TSTLM-02 Heavy Lift and Slide Door Hardware System

Model NO.
TSTLM-02
Quantity:

JHL's Lift & Slide Door Hardware System is designed for heavy sliding door sash, standard load-bearing 300KGS. When the whole door weight is more than 300KGS, the intermediate roller need to be installed.

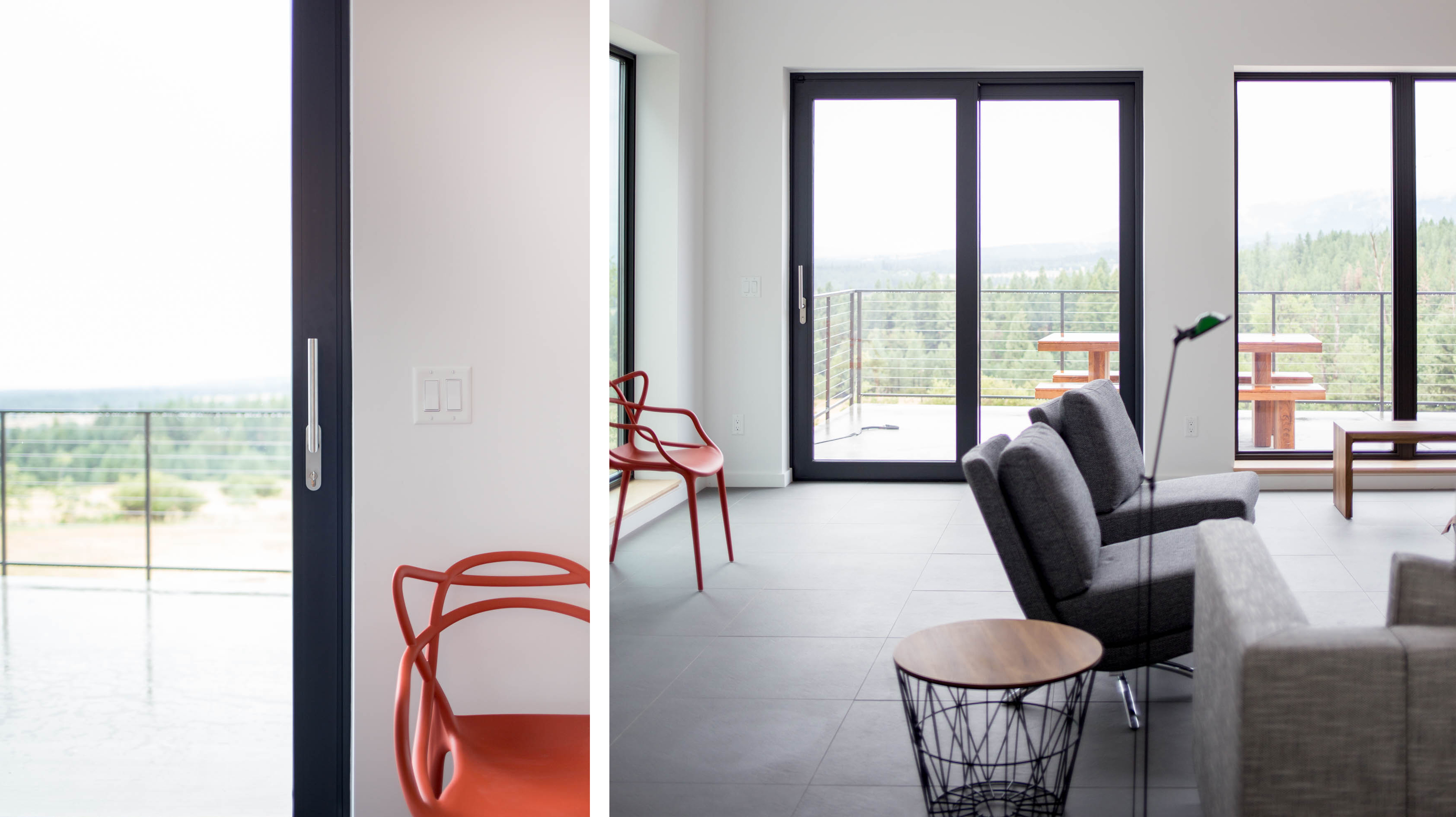

By rotating the big handle 180°, to control the door sash lifted and slided. Compared with sliding doors, lift & slide doors have better thermal performance and air tightness, and can be stopped at any position, which is very suitable for balcony doors, sun rooms and partition doors.

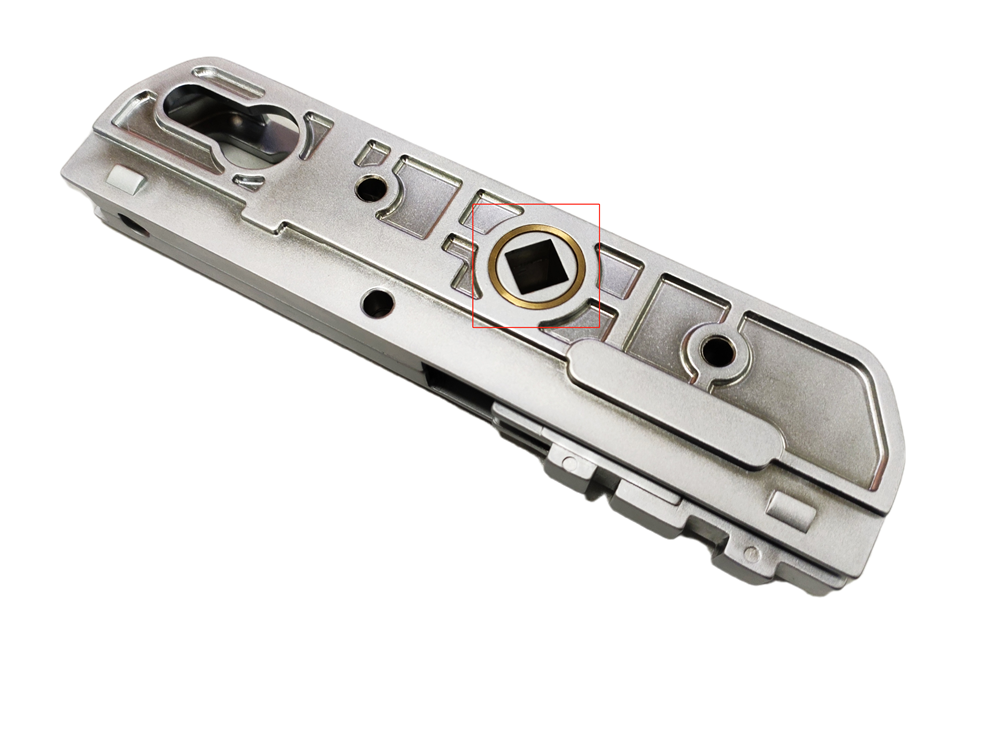

The lock body use copper covering, max bearing 400kg-door's torque force, durable and stable.

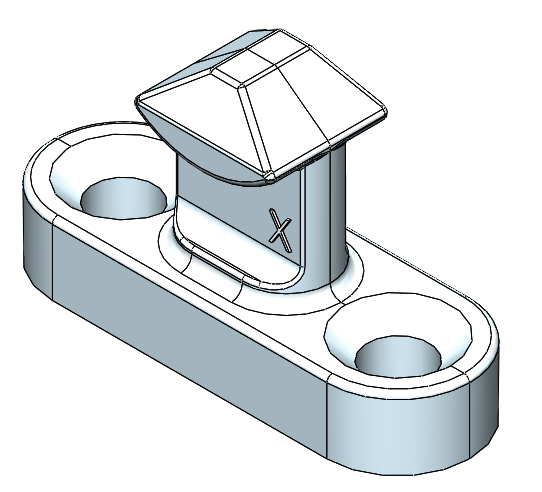

Keeper and hook are concealed, preventing to hang clothes or bruise people.

Specification

Part NOTSTLM-02
Sash Height2000-2700mm
Sash Width700-3200mm
Load-bearing≤400KGS
RemarkLift & Slide Door System

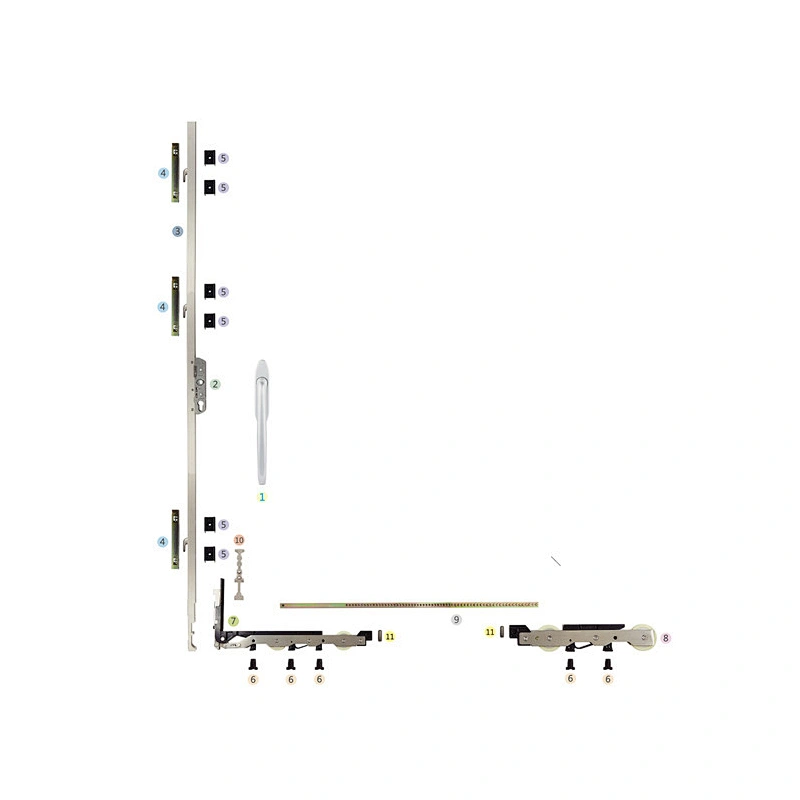

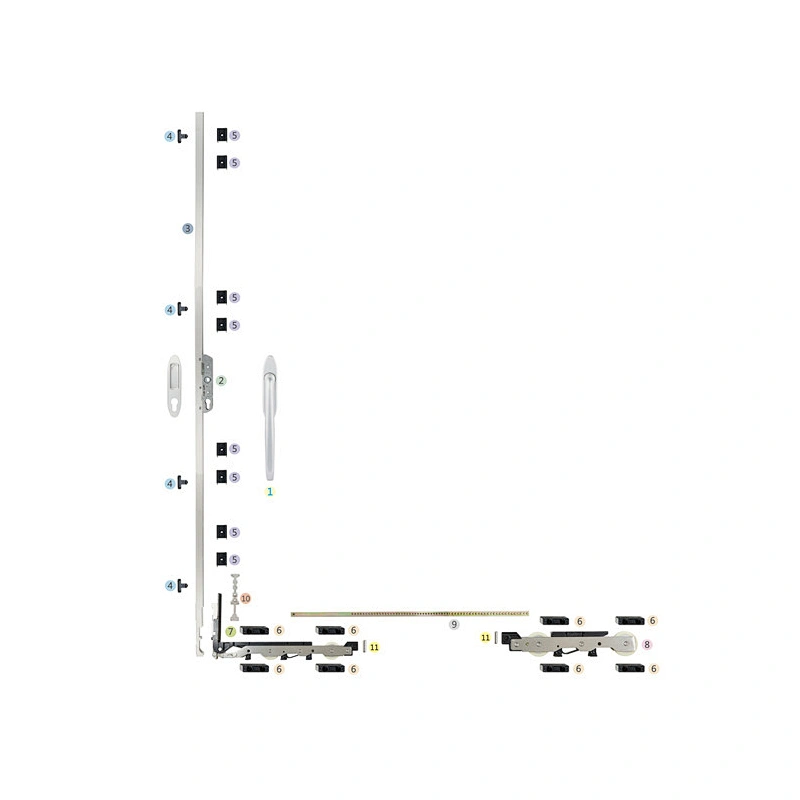

Hardware Parts

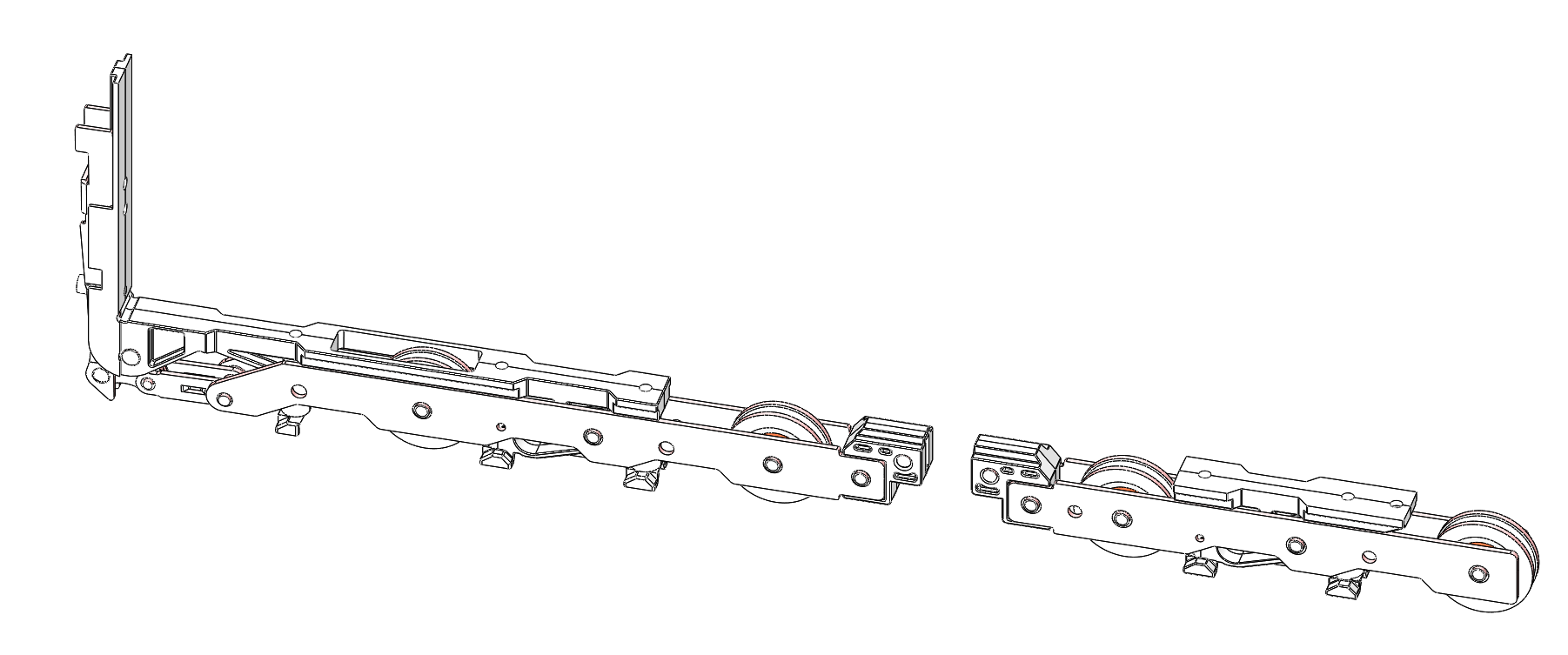

Rollers

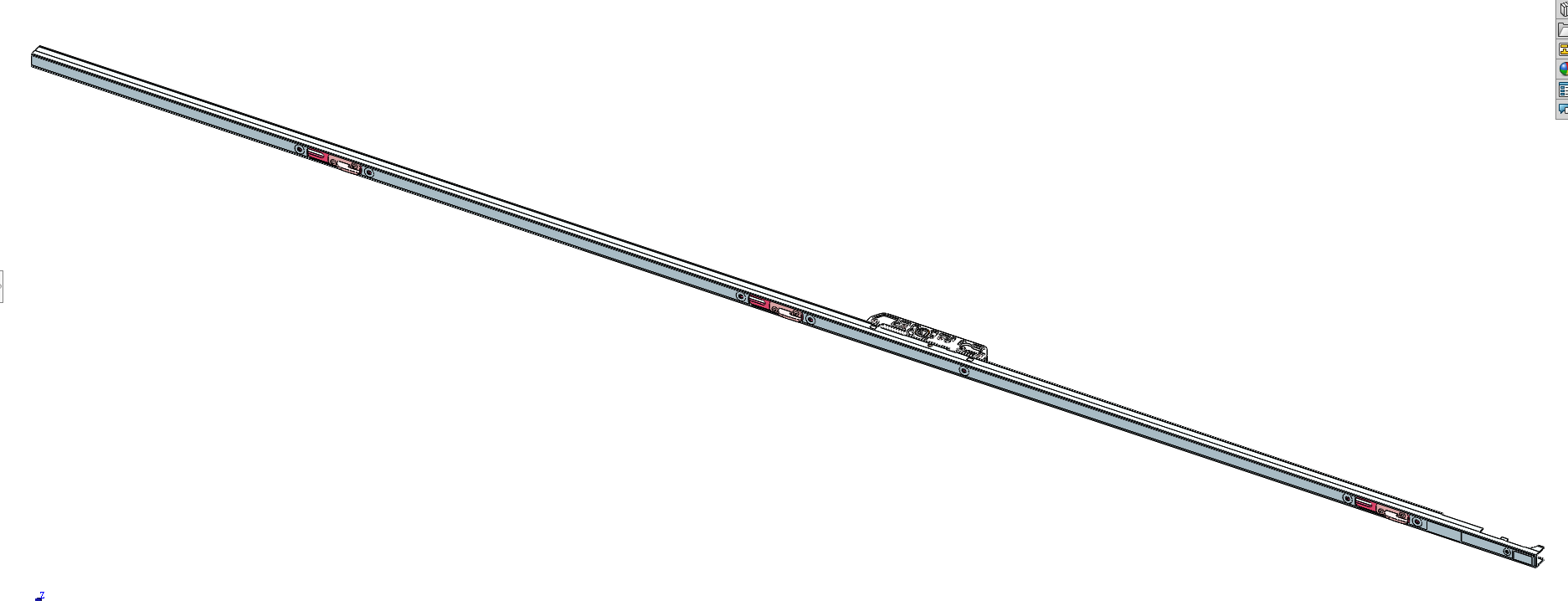

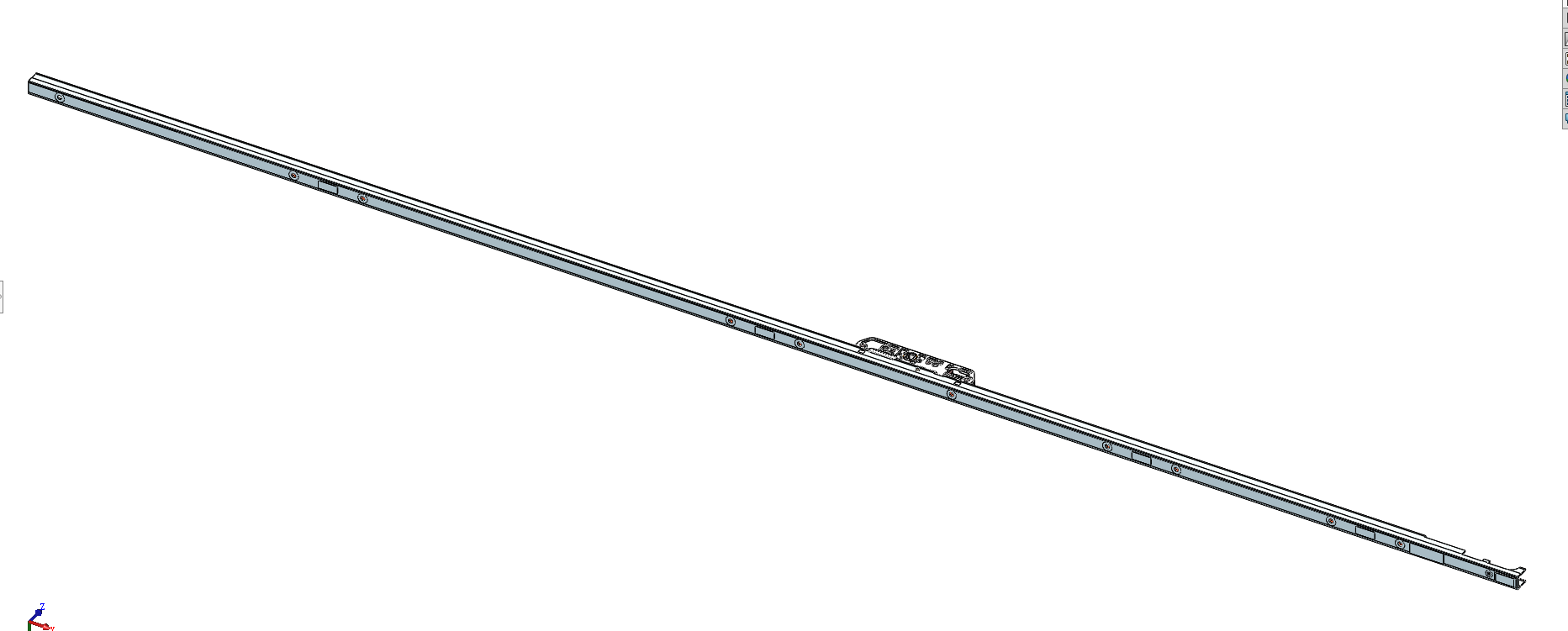

Lock Cylinder
Lock Cylinder

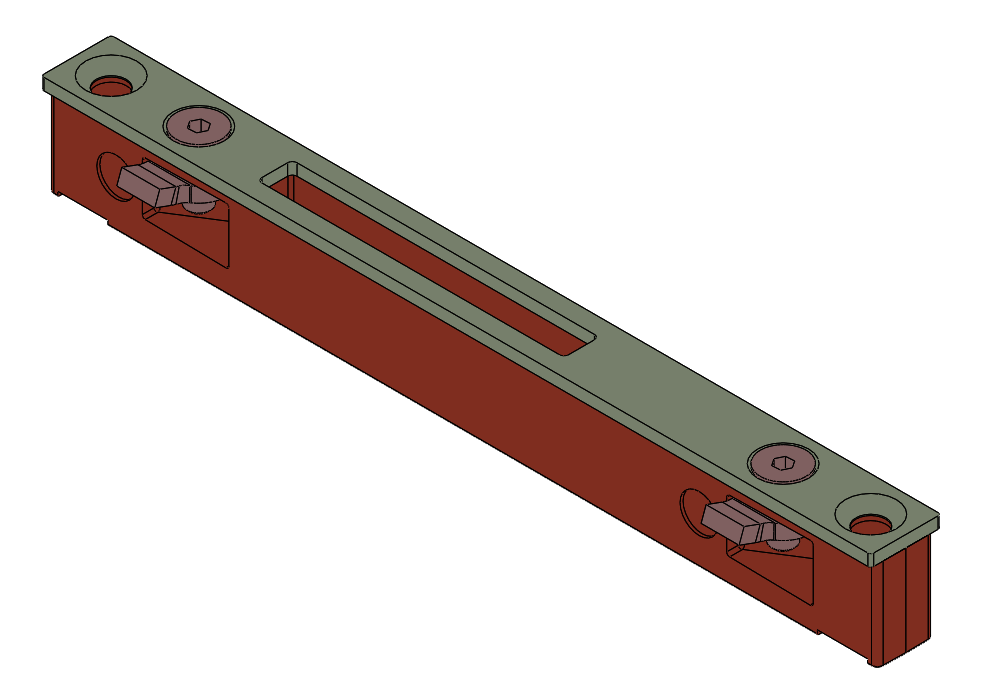

Keeper
Keeper

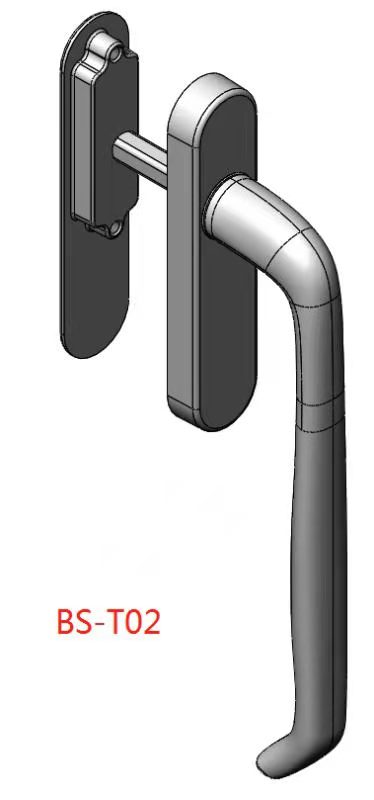

Handle BS-T02

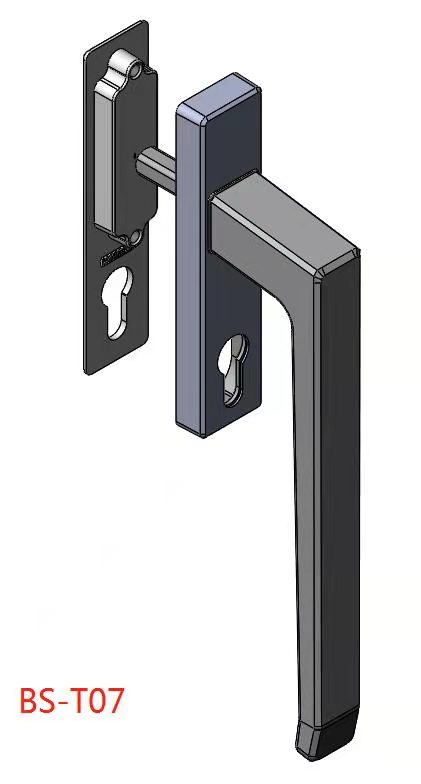

Handle BS-T07
